| Rated power | 20 W | 30 W | 100 W | 200 W |
|---|---|---|---|---|
| Wavelength | 1064 nm | |||
| Pulse frequency | 1–4000 kHz | |||
| Pulse duration | 2–500 ns | |||
| Beam exit diameter | 7±1 mm | |||
| Character / Source | Vector, Custom, Windows Fonts, TrueType | |||
| Barcode | ✓ | |||
| 2D code | ✓ | |||
| GS1 data bar | ✓ | |||
| Logo image | ✓ | |||
| Communication interface | RS-232, TCP/IP | |||
| Optional communications | EtherNet/IP, PROFINET | |||
| Cooling | Air | |||
| Power consumption | 120 W | 180W | 440W | 830W |
| Safety level | Class IV | |||
| PL d safety | Optional | |||

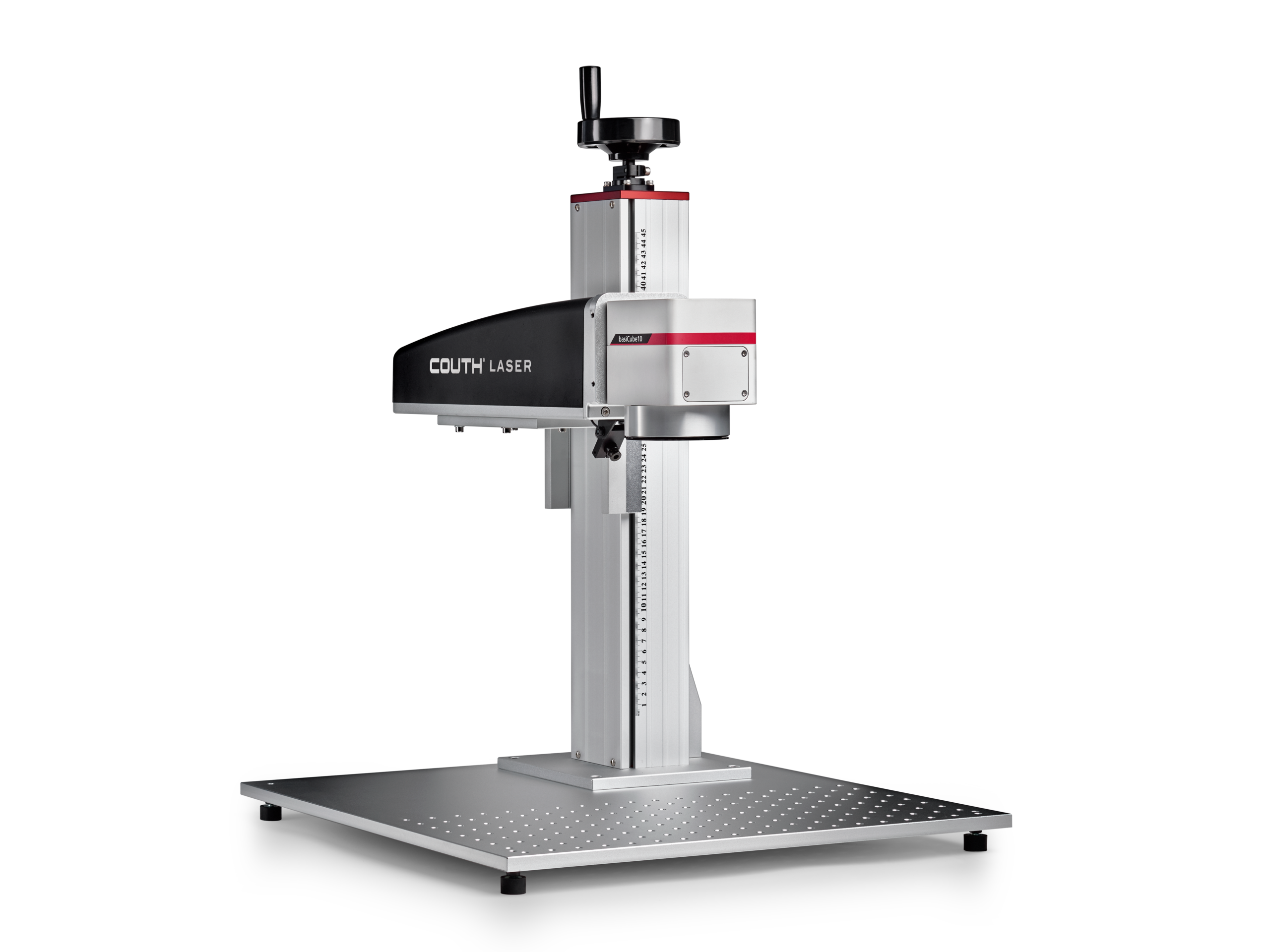

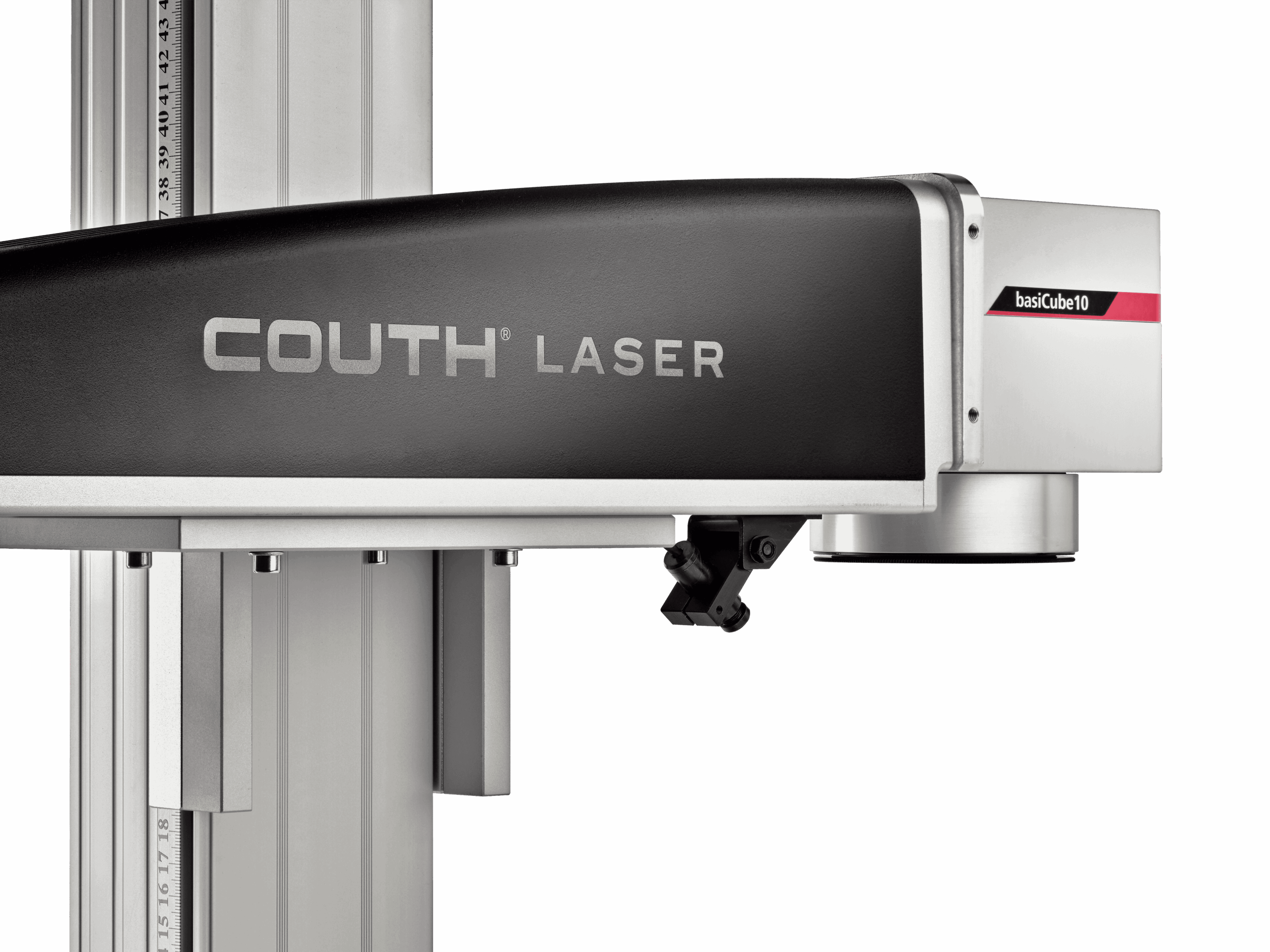

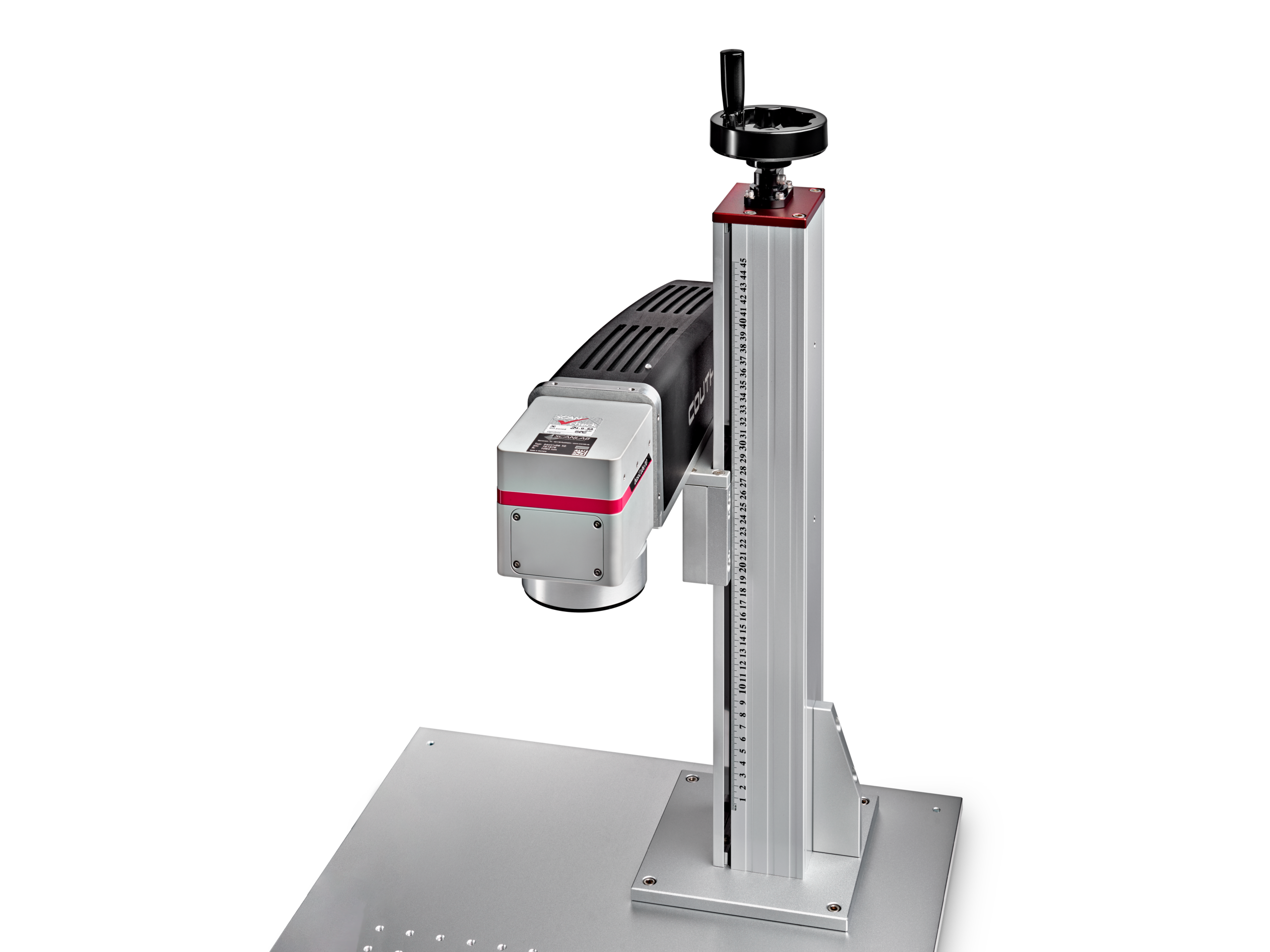

Our COUTH LASER MOPA systems incorporate a modulable pulse module with a wide frequency range, allowing you to adjust the duration of the thermal impact to adapt it to the thermal requirements of each surface.
This superior level of control drastically reduces the occurrence of burns or burrs, improving the sharpness, legibility, and final contrast of the mark on delicate materials or complex alloys.
Thanks to the versatility of the MOPA source, high-precision direct marking is achieved without compromising the structural integrity of the component. The flexibility of this system allows for color marking on stainless steel and optimizes cycle times by completing the coding in fewer passes.
In addition, the MOPA line is fully compatible with COUTH LASER’s range of integrable accessories to seamlessly adapt to plant workflows.
To adapt to any geometry or plant requirement, the MOPA laser marker offers advanced optical amplification and positioning options:
| F100 | F160 | F254 | F380 | F420 | F160 (200W) |
|
|---|---|---|---|---|---|---|
| Focus length | 100 mm | 160 mm | 254 mm | 380 mm | 420 mm | 160 mm |
| Working distance | 114 mm | 176 mm | 287 mm | 414 mm | 465 mm | 187 mm |
| Marking area (mm) | 70×70 | 110×110 | 175×175 | 250×250 | 300×300 | 110×110 |
Connection options
