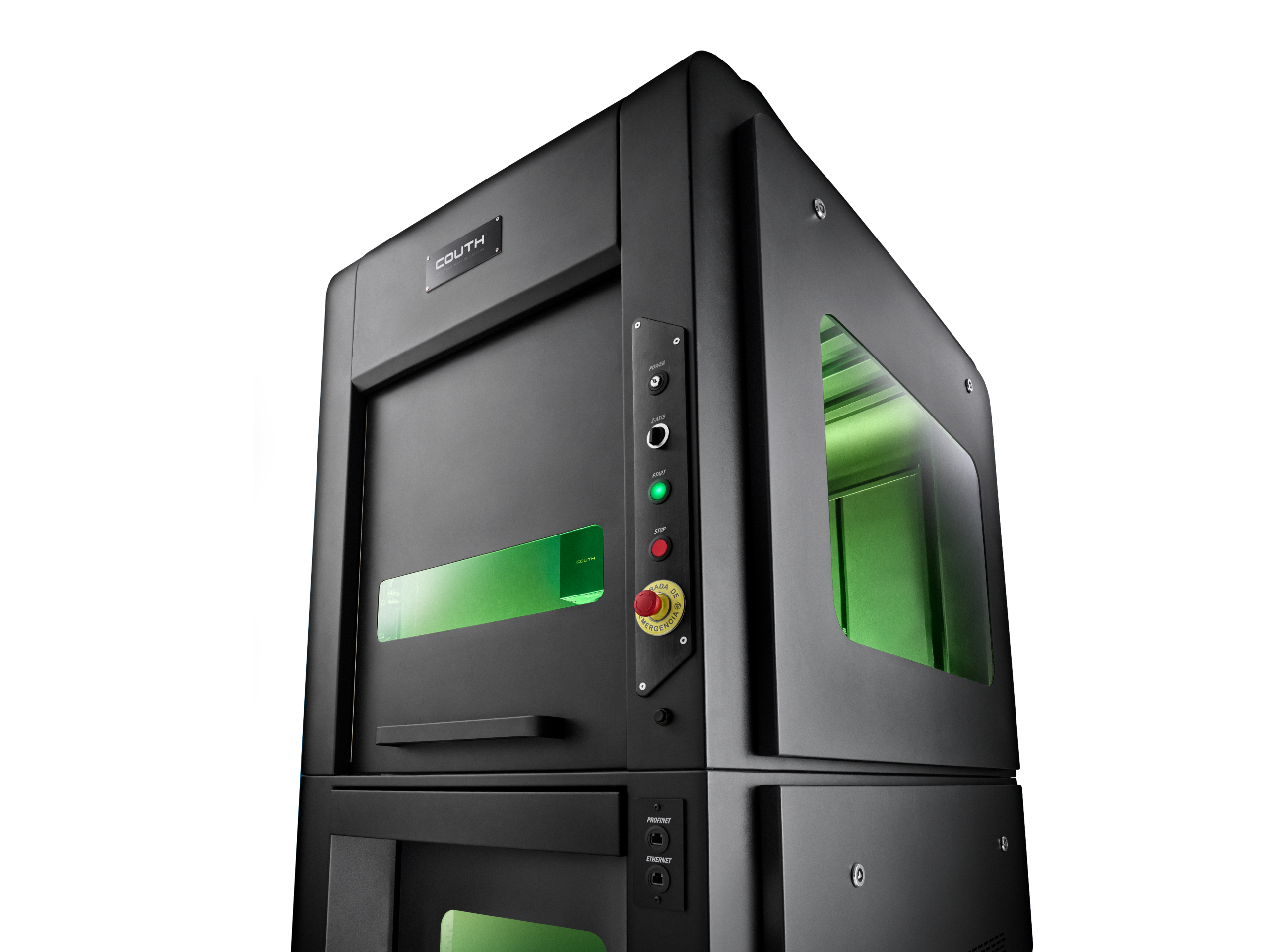

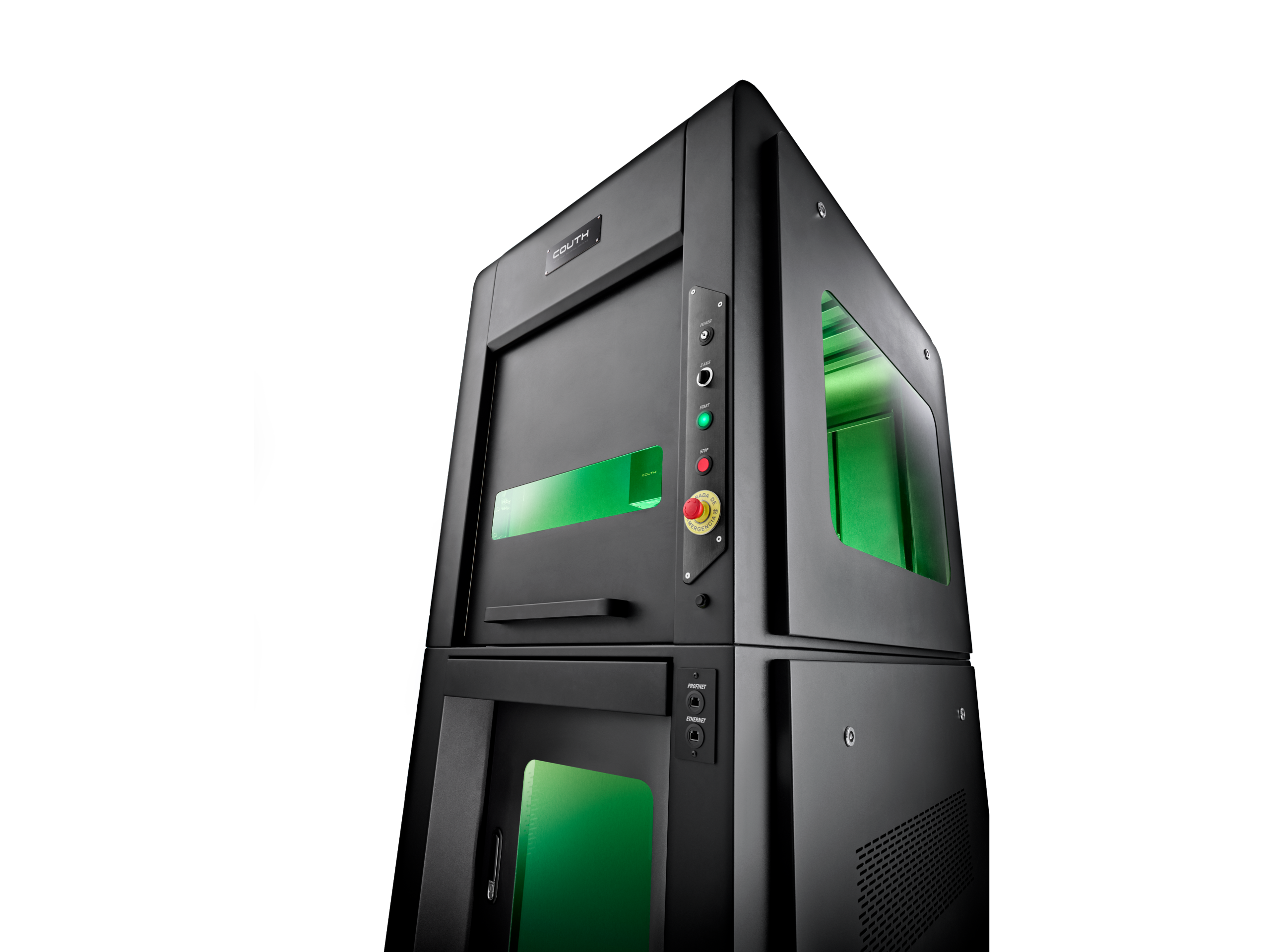

Compact, safe, and ready for production in tight spaces.When the challenge is not just marking a part, but increasing workstation throughput, the TOP Marking Station offers a larger-capacity enclosure for working with larger parts or multiple units in a single process. It maintains the safety and robustness of an enclosed station while adding superior ergonomics and greater automation capabilities.
Request information about this product
Capability to mark a large number of parts in a single process, reducing loading and unloading times.
400 x 300 mm workpiece area, suitable for larger components or multi-part fixtures.

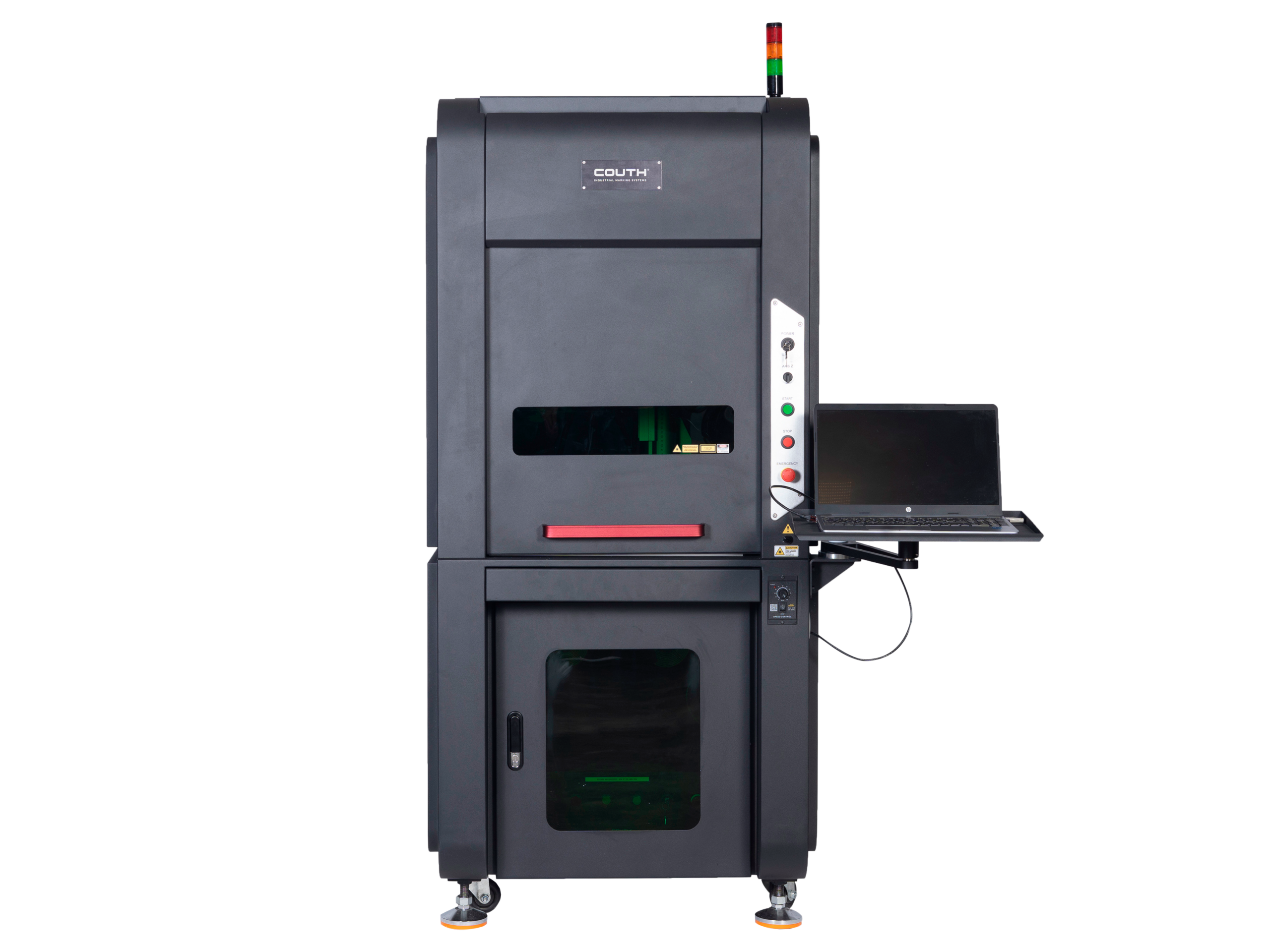

Auxiliary mount for a laptop, facilitating programming and process control from the workstation.
Vertical door opening to minimize the required front clearance.
Class I safety rating, worktable with threaded holes, and pre-installation for a fume extraction system.
Can be integrated into 24/7 production lines.
Motorized column as standard, with the option of a programmable motorized column for frequent reference changes.
LENSES
Maximum workpiece height (mm)
Working distance (mm)
Marking area (mm)
F100
636
114
70×70
F160
574
176
110×110
F254
463
287
175×175
F380
336
414
250×250
F420
285
465
300×300
Configuration
Maximum workpiece area
400 x 300
Station dimensions
800 x 1100 x 1718 mm
Total station weight
±300 kg
Door system
Vertical opening
Work table
Threaded holes
Fume extraction
Pre-installation included
Optional
Programmable motorised column; Automated door opening; Foot-operated door
Advantages of TOP Marking Station
Capability to mark a large number of parts in a single process, reducing loading and unloading times.
400 x 300 mm workpiece area, suitable for larger components or multi-part fixtures.
Auxiliary mount for a laptop, facilitating programming and process control from the workstation.
Vertical door opening to minimize the required front clearance.
Class I safety rating, worktable with threaded holes, and pre-installation for a fume extraction system.
Can be integrated into 24/7 production lines.
Motorized column as standard, with the option of a programmable motorized column for frequent reference changes.
Lenses from TOP Marking Station
LENSES
Maximum workpiece height (mm)
Working distance (mm)
Marking area (mm)
F100
636
114
70×70
F160
574
176
110×110
F254
463
287
175×175
F380
336
414
250×250
F420
285
465
300×300
Configuration ofTOP Marking Station
Configuration
Maximum workpiece area
400 x 300
Station dimensions
800 x 1100 x 1718 mm
Total station weight
±300 kg
Door system
Vertical opening
Work table
Threaded holes
Fume extraction
Pre-installation included
Optional
Programmable motorised column; Automated door opening; Foot-operated door
