      COUTH LASER CO₂

      •  System can be integrated into production lines.
      •  High productivity with no need for any consumables.
      •   Premium optics for a top-quality laser beam
      •  Software that is adaptable to wide possibilities-needs.
      •  Great flexibility and legibility.
      •  Fast, clean, and safe process.
      •  Minimum maintenance.
      •  Suitable for marking organic materials, plastics, minerals or coated metals.

      Your trusted laser marking system

      Download product information in PDF

        *All fields are mandatory

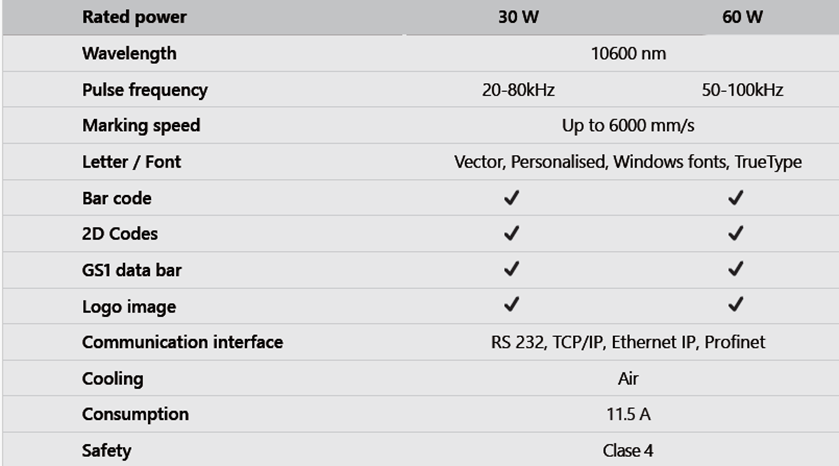

        Characteristics  | COUTH LASER CO₂

        Table of characteristics


        3D Marking



        • Speed up to 5000 mm/s.
        • Marking area 200×200 mm.
        • Versatility in materials.
        • Supported file formats: .STL (recomended), .SMF and .X3D.
        • Adjustable power to work with higher power levels than conventional 3D systems, increasing the range of applications and marking efficacy.
        • Dynamic focus technology that automatically adjusts the focal position for marking, achieving precise and uniform results on complex surfaces.
        • Advanced optical design to reduce light loss, ensuring high precision and marking speed.
        Standalone



        • Laser system that can be integrated into any production line.
        • The software can be set to operate totally autonomously.
        • File transfer from PC to the laser system via USB.
        • Marking in STAND ALONE mode (no PC required).
        • Serial option included in all COUTH LASER power settings.
        Deep Marking

        • Process by means of which the laser beam eliminates material to create a non-superficial mark.
        • Provides for light marking (up to 25 microns) and superior marks for moulds, seals, etc.
        MOF - Mark on the fly



        • Dynamic marking system that can be used while parts are in movement
        • The perfect solution to be integrated onto production lines, maximising the system’s power and speed.
        • An ideal option for stations with a conveyor belt line since the movement of the object to be marked is superimposed with the laser beam’s movement.

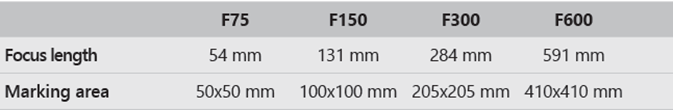

        Lenses

        Connection options
        • PROFINET
        • ETHERNET/IP
        AUTOFOCUS



        • Accessory to automate the optimal focusing for marking.
        • Motorized column that automatically lowers or rises to mark in the ideal position.

         COUTH LASER CO₂
