COUTH LASER MOPA
- Versatile solution for applications that require precision without compromising material integrity.
- Marking system with adjustable pulse duration.
- Greater flexibility for different materials.
- Wide frequency range.
- Modulated pulse.
- Its technology allows for better control over applied heat, reducing burns and burrs while improving marking quality and contrast.
- Color marking on stainless steel.
- Efficient marking with fewer passes.
- Compatible with different COUTH LASER accessories.
Your trusted laser marking system
Download the product information in PDF
Characteristics COUTH LÁSER MOPA

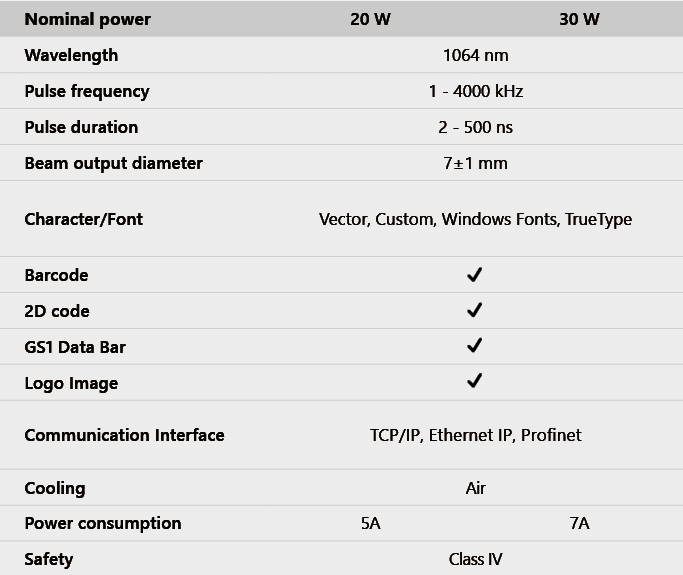

CharacteristicsTable of characteristics

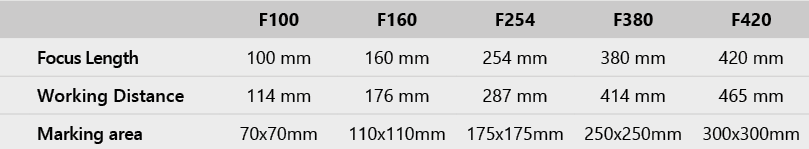

Lenses
3D Marking
- Speed up to 5000 mm/s.
- Marking area 200×200 mm.
- Versatility in materials.
- Supported file formats: .STL (recomended), .SMF and .X3D.
- Adjustable power to work with higher power levels than conventional 3D systems, increasing the range of applications and marking efficacy.
- Dynamic focus technology that automatically adjusts the focal position for marking, achieving precise and uniform results on complex surfaces.
- Advanced optical design to reduce light loss, ensuring high precision and marking speed.
Standalone
- Laser system that can be integrated into any production line.
- The software can be set to operate totally autonomously.
- File transfer from PC to the laser system via USB.
- Marking in STAND ALONE mode (no PC required).
- Serial option included in all COUTH LASER power settings.
Deep Marking
- Process by means of which the laser beam eliminates material to create a non-superficial mark.
- Provides for light marking (up to 25 microns) and superior marks for moulds, seals, etc.
MOF - Mark on the fly
- Dynamic marking system that can be used while parts are in movement
- The perfect solution to be integrated onto production lines, maximising the system’s power and speed.
- An ideal option for stations with a conveyor belt line since the movement of the object to be marked is superimposed with the laser beam’s movement.
Autofocus
- Accessory to automate the optimal focusing for marking.
- Motorized column that automatically lowers or rises to mark in the ideal position.
Connection options
- PROFINET
- ETHERNET/IP
COUTH LÁSER MOPA
The COUTH LASER MOPA laser range has been designed to deliver excellent laser marking performance on all types of materials. Thus, COUTH LASER MOPA engraving machines ensure the best results and maximum marking quality without compromising material integrity.
Downloads & Information
