      COUTH LASER FIBER

      •  Laser marker unit designed to increase the profitability of production processes, thanks to optimised cycle times, fast start-up, and connectivity within Industry 4.0.
      •  Its high quality components mean you can work in the most demanding work environments 24/7, like the automobile industry, with high performance.
      • Since there are no mechanical components subject to wear, there is a rapid return on investment because no maintenance besides cleaning the lens is required.
      •  Its silent marking means that it more than meets European Parliament Directive 2003/10/CE on health and safety provisions regarding exposing workers to hazards from physical agents (noise).
      •  It has a simple, intuitive interface, and developing Profinet and Ethernet/IP libraries provide fast integration and start-up.
      • A versatile solution for a wide variety of materials (metal, plastic, glass, ceramic, etc.) with high quality results.

      Your trusted laser marking system

      Download product information in PDF

        *All fields are mandatory

        Characteristics  | COUTH LASER FIBER

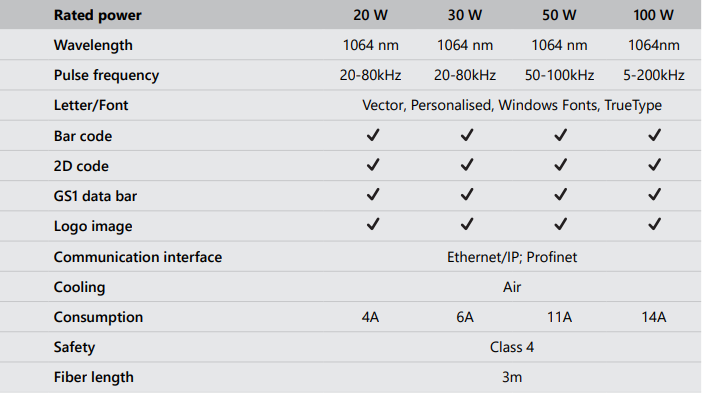

        Table of characteristics


        3D Marking



        • Speed up to 5000 mm/s.
        • Marking area 200×200 mm.
        • Versatility in materials.
        • Supported file formats: .STL (recomended), .SMF and .X3D.
        • Adjustable power to work with higher power levels than conventional 3D systems, increasing the range of applications and marking efficacy.
        • Dynamic focus technology that automatically adjusts the focal position for marking, achieving precise and uniform results on complex surfaces.
        • Advanced optical design to reduce light loss, ensuring high precision and marking speed.
        Standalone



        • Laser system that can be integrated into any production line.
        • The software can be set to operate totally autonomously.
        • File transfer from PC to the laser system via USB.
        • Marking in STAND ALONE mode (no PC required).
        • Serial option included in all COUTH LASER power settings.
        Deep Marking

        • Process by means of which the laser beam eliminates material to create a non-superficial mark.
        • Provides for light marking (up to 25 microns) and superior marks for moulds, seals, etc.
        MOF - Mark on the fly



        • Dynamic marking system that can be used while parts are in movement
        • The perfect solution to be integrated onto production lines, maximising the system’s power and speed.
        • An ideal option for stations with a conveyor belt line since the movement of the object to be marked is superimposed with the laser beam’s movement.
        • Vídeo

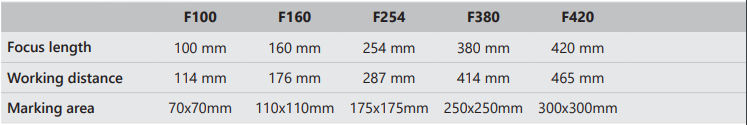

        Lenses

        Connection options
        • PROFINET
        • ETHERNET/IP

        Applications  | COUTH LASER FIBER

        The COUTH LASER FIBER, line was designed to offer excellent laser marking performance on all kinds of materials. Thus COUTH LASER FIBER engraving machines provide the best results and top quality in marking on any kind of metal, such as stainless steel and aluminium, as well as plastics like polyethylene, PMMA, polycarbonate, ABS, and polyamide, in addition to a wide range of ceramic materials.
