      Differences between mechanical engraving and laser engraving


      When discussing the differences between mechanical and laser engraving, it is important to highlight that they are two popular methods to create permanent marks on a wide variety of materials. At COUTH, our experience means we can guarantee that they both offer unique advantages in terms of speed, precision, and marking capacity on a wide range of materials.

      To begin with, each method has its own specific applications, and the selection between mechanical and laser engraving depends on multiple factors, such as material type, mark design, production scale, and quality requirements.

      With mechanical engraving, for example, we use physical tools, like milling cutters, gravers, or needles are used to cut or scratch the surface of the material and thus create permanent marks. This process is commonly used in the industry to mark metal, wood, plastic, and other hard materials.

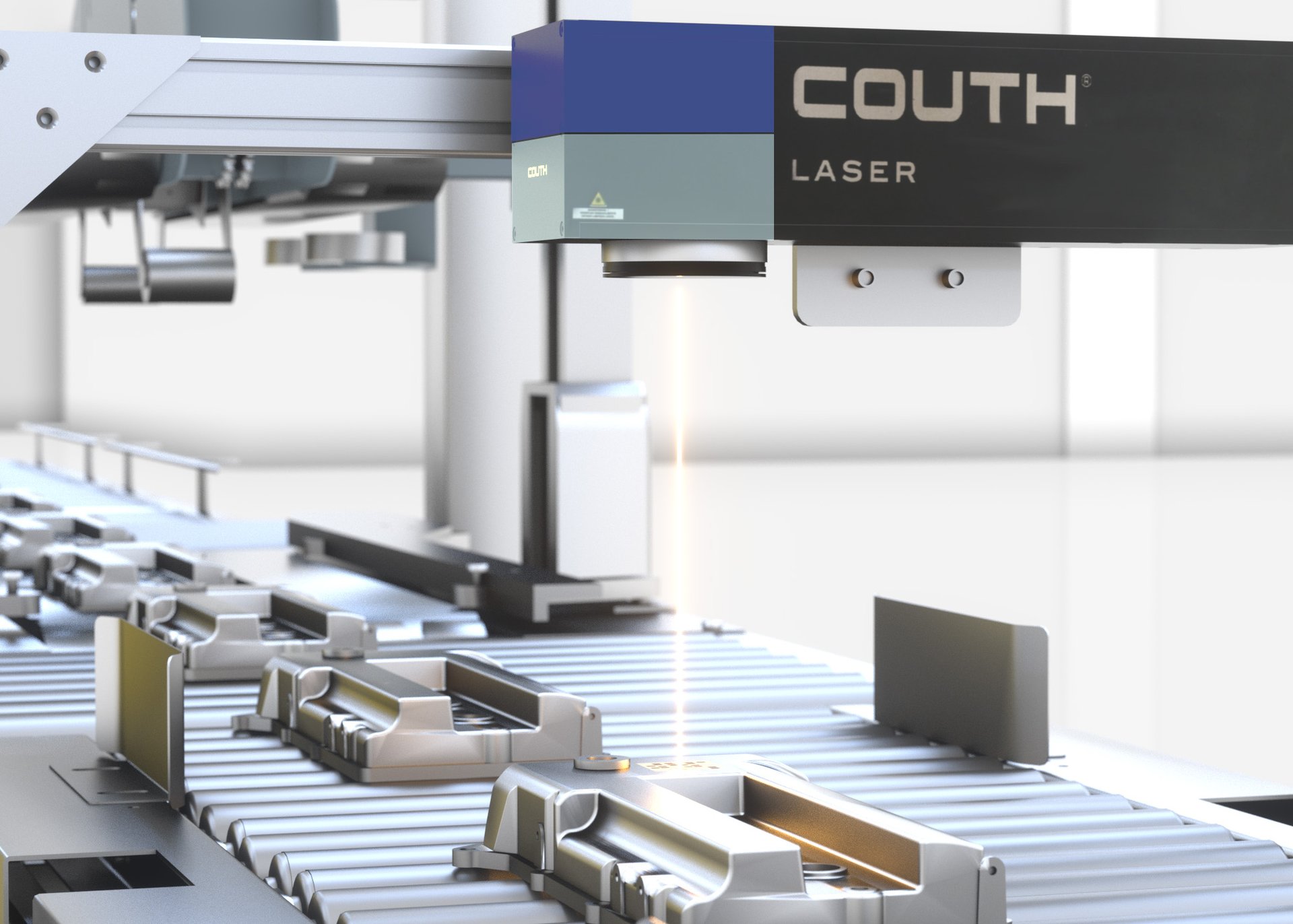

      On the other hand, laser engraving is a marking process that uses a highly concentrated beam of light to remove material and create marks on the surface. This method is versatile and precise, and is widely used in industrial, medical, jewellery, artistic, and other applications.

      Differences between mechanical engraving and laser engraving

      There are important differences between mechanical engraving and laser engraving. They include:

      1. Marking process

      Mechanical engraving

      Mechanical engraving requires skill and experience to obtain precise, high-quality results. It uses physical tools, like milling cutters, gravers, or needles are used to cut or scratch the surface of the material and thus create permanent marks. With mechanical engraving, you must follow this process:

      1. The first step is to prepare the material to be engraved. This might be metal, wood, plastic, or another material, depending on the application and specific requirements.
      2. Then, you must create the design you wish to engrave on the material. You can do this with graphic design software or by drawing it manually on the material with a pencil or marker.
      3. The next step is to firmly position the material in the working area, either with braces or with other suitable attachment devices.
      4. Depending on the kind of material you are going to engrave and the specific design, you select the suitable engraving tool, since milling cutters, gravers, and needles come in different shapes and sizes.
      5. You adjust the engraving machine’s parameters, such as the tool’s rotation speed, depth of the cut, and movement trajectory.
      6. With the correct settings, you can now begin the engraving process. The machine moves the engraving tool along the material’s surface, following the pre-established design pattern.
      7. Once the engraving is complete, remove the fixed material and do the final finish, such as cleaning or polishing, if necessary.

      Laser engraving

      The basic process for laser engraving follows these steps:

      1. The first step in the laser engraving process is creating or preparing the design you wish to engrave.
      2. Once you have the design, prepare the laser marker. This includes setting the power and speed of the laser, as well as adjusting other parameters based on the characteristics of the material to be engraved.
      3. The next step is to place the material on the desktop of the laser engraving device, which must be correctly fixed to keep it from moving.
      4. Adjust the laser focus to guarantee that it takes precise action on the material’s surface.
      5. Once everything is properly configured, you can begin the laser engraving process.
      6. Once engraving is complete, verify the quality and clarity of the marks.

        2. Type of energy used

        Mechanical engraving

        Unlike laser engraving, mechanical engraving uses mechanical energy to mark or engrave the surfaces of materials. The mechanical energy for engraving can come from different sources, such as:

        1. Electrical energy: Used to drive the motors that move the cutting or engraving tools along the part being worked on.
        2. Kinetic energy: This refers to the energy of the movement. With mechanical engraving, this energy is used when the cutting or engraving tool makes contact with the material and applies force to eliminate or deform it.
        3. Potential energy: Related to the position or configuration of the system.

        Mechanical engraving mainly uses electrical energy to drive the cutting tools, and kinetic energy to apply force and remove material from the surface, achieving the effect of the desired engraving.

        Laser engraving

        Uses concentrated light energy to melt or vaporise the substrate’s surface material. This engraving benefits from the energy generated by a highly concentrated and controlled beam of light, known as laser energy, to make the mark or engrave the materials in a precise and detailed fashion.

        Laser energy is emitted as a coherent, high-intensity beam of light that can be precisely focused on the surface of the material you wish to engrave. When taking action on the material, the laser beam creates controlled physical or chemical changes on the surface, providing personalised marks, designs, or cuts.

        3. Precision and detail

        Mechanical engraving

        Precision and detail in mechanical engraving depends on several factors:

        1. The quality and sharpness of the tools you use: Properly sharpened and high-quality tools provide finer lines and more precise details in the engraving.
        2. The type of material to engrave: Some materials are more prone to splintering or wear during the engraving process, which can affect the precision and detail of the end result.
        3. The operator’s skill and experience: The operator’s skill and experience in handling the tools and controlling pressure and movement while engraving also influence the precision and detail of the result.

        In comparison with laser engraving, mechanical engraving may require more time and effort to obtain similar results in terms of precision and detail.


        Laser engraving

        Laser engraving is known for its ability to produce fine details and high precision in engraving. Factors that influence the precision and detail of laser engraving include:

        1. Laser power and quality: High-power, quality laser systems can generate a smaller focal point, which provides for engraving finer details with greater precision.
        2. The type of material: Laser engraving is effective on a wide range of materials, including metal, wood, plastic, glass, ceramic, and more. The capacity for precision and detail can vary depending on the specific material.
        3. Equipment configuration and settings: Parameters such as scanning speed, laser power, and frequency can be adjusted to optimise precision and detail in engraving, depending on the material and the design.

        Laser engraving has an additional advantage: in addition to being faster, it is also less prone to damaging the material in comparison with mechanical engraving. For this reason, it is very popular when you require minute details, like when manufacturing jewels.

        4. Speed and efficiency

        Mechanical engraving

        In terms of speed between mechanical and laser engraving, mechanical engraving is much slower. Factors that influence mechanical engraving speed include:

        1. Type of material
        2. Depth and detail of the engraving
        3. Operator skill

        Laser engraving

        Laser engraving does not require physical contact with the material’s surface, which reduces wear on tools and provides faster processing. Mover, laser engraving is able to reduce fine, complex details with exceptional quality and precision.

        Factors that influence the speed and efficiency of laser engraving include:

        1. Laser power: The greater the power, the faster the laser can cut or engrave the materials.
        2. Movement speed: The speed at which the laser moves over the surface also affects the speed of the engraving.
        3. Type of material: Some materials are easier and faster to engrave with laser than others. For example, metals like stainless steel tend to be more difficult to engrave than plastic or soft wood.
        4. Design and complexity: Simple designs are always faster to engrave than designs with complex details.
        5. Laser configuration and settings: To maximise the speed and efficiency of laser engraving, it is important to correctly configure the laser’s parameters, such as power, speed, and focus.

        5. Flexibility in terms of materials

        Mechanical engraving

        The types of materials you can mark may be limited, since some materials may be difficult to cut or scribe effectively.

        Mechanical engraving is more suitable for solid and relatively soft materials, like metal, wood, plastic, and some types of ceramic. However, it can be less effective on harder or fragile materials, since mechanical tools can have a difficult time precisely cutting or engraving very hard or breakable surfaces.

        Moreover, when compared to laser engraving, mechanical engraving may be more limited in terms of its ability to reproduce complex designs or fine details. This is because mechanical tools have certain limitations in terms of the resolution and precision of engraving, especially on delicate or very hard materials.

        While mechanical engraving is flexible and versatile on a wide range of materials, its capacity is limited when compared to laser engraving, especially for hard or fragile materials or when reproducing highly detailed designs. In these cases, laser engraving can offer greater flexibility and precision.

        Laser engraving

        This highly versatile technique uses a concentrated, high-energy laser beam to engrave or mark the surface of a wide variety of materials, all with precision and detail.

        In terms of flexibility, laser engraving is able to work with a wide variety of materials, including metal, plastic, wood, leather, glass, ceramic, paper, cardboard, fabric, and many more. Moreover, laser technology can adapt to engrave hard, soft, plain, rough, and even three-dimensional materials, which proves its versatility.

        In terms of its efficiency, laser engraving is fast and precise, which makes it ideal for mass production or projects that require fast delivery turnaround. Computerised laser control also provides for reproducing complex designs and fine details with high precision, making it ideal for applications that require high quality and exactness in the engraving.

        Without any room for doubt, laser engraving is a popular option for many industrial, artistic, and commercial applications. Its ability to work with different materials and its precision make it a very versatile and powerful technique in the engraving and marking world.

        In closing, we might say that laser engraving is much faster and more efficient than mechanical engraving. It provides greater productivity and precision since it does not require physical contact with the material and can make detailed engravings in less time.

        Additionally, laser engraving is highly versatile and can be used in a wide range of applications, from marking identification on electronic devices to creating personalised designs in jewellery.

        These are just some of the key differences between mechanical engraving and laser engraving. As you know understand, each one of these techniques has its own advantages and disadvantages. The choice between them depends on factors like the kind of material, mark design, production scale, and quality requirements.

        That being said, if you still have questions or already know which option to get, please do not hesitate to contact us. We offer you service and equipment of the highest quality and with the most advanced technology.
